Description
- Electronic: No
- Material Type: plastic and metal
- Item Weight: 1.1kg
- Item Height: 13inch
- Item Width: 9inch
- Item Length: 27inch
- External Testing Certification: ce
- Voltage: 12/24V
- Power: W
- Model Name: Topdiag P100
- Software Version: Latest version
- Hardware Version: Latest version
- Item Type: Battery Testers
- Brand Name: JFIND
- Origin: Mainland China
- Certification: RoHS,FCC,CE
- Item Name: Topdiag P100 pro Car Electric Circuit Tester
- Product Name: Topdiag P100 pro 12V/24V Power Tester
- Special Function: Battery Tester for Car/Truck etc.

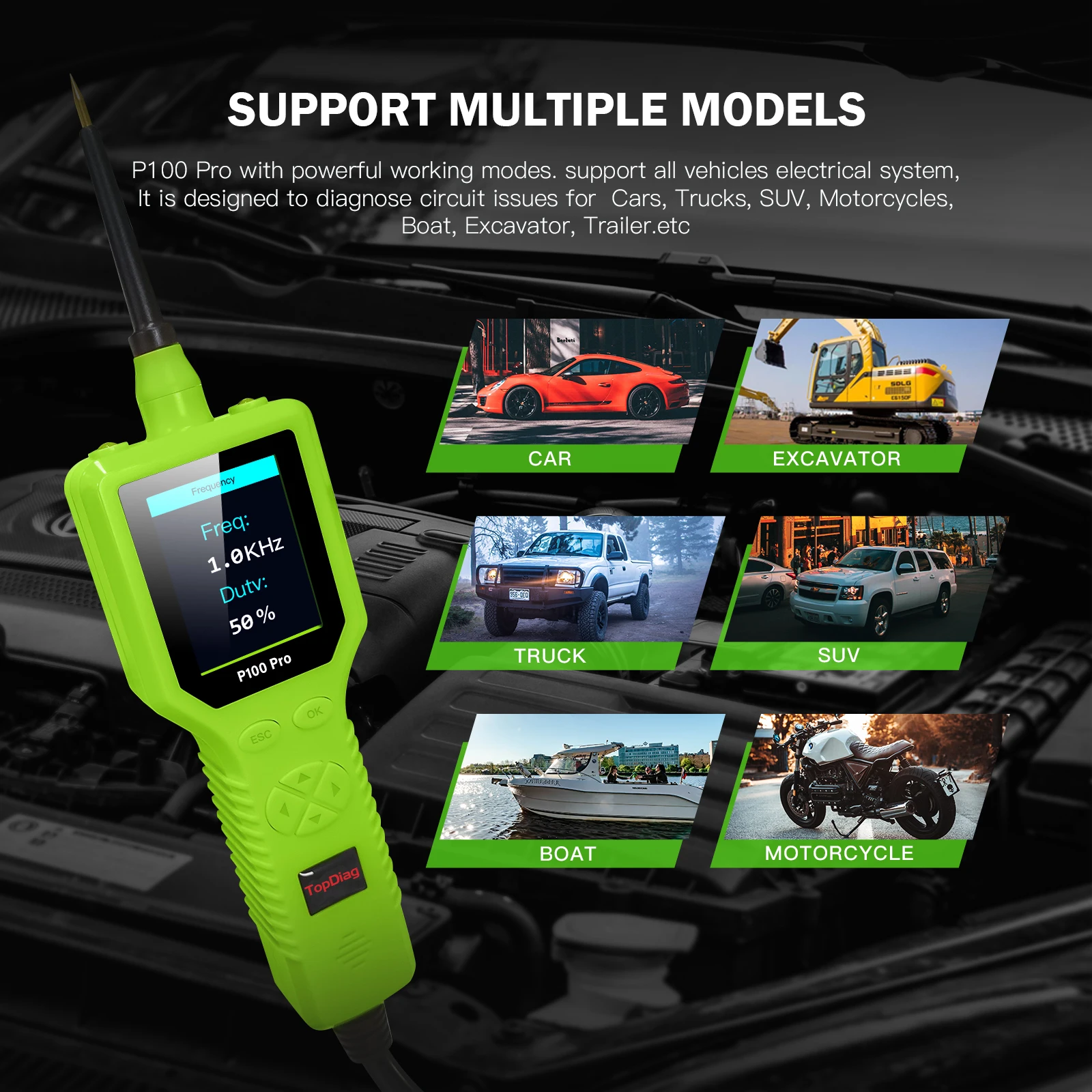

- Applicable models: 12-24V
- Warranty time: 1 year
TOPDIAG Original Automotive Electrical Circuit System Tester for Cars and Trucks 0V – 70V :

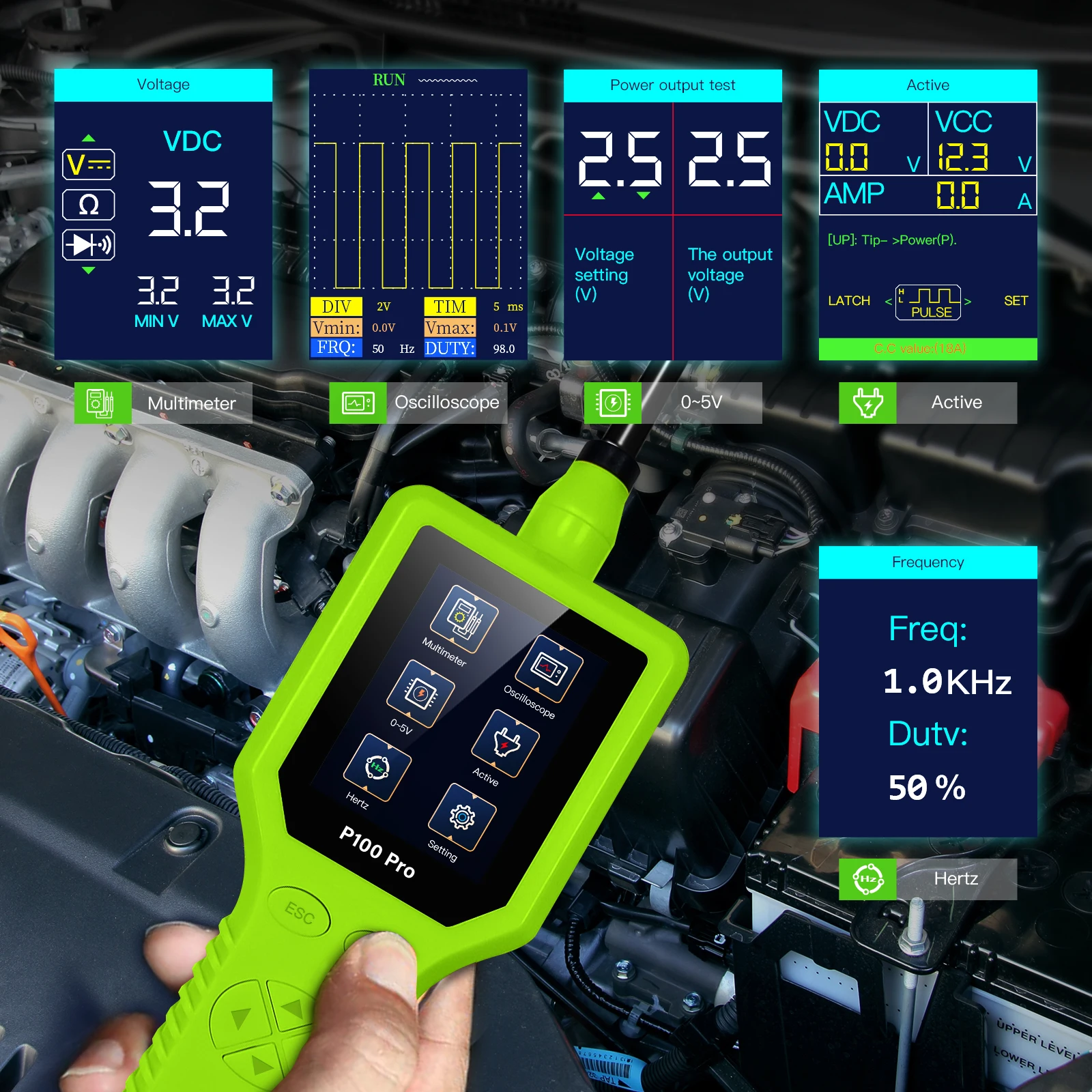

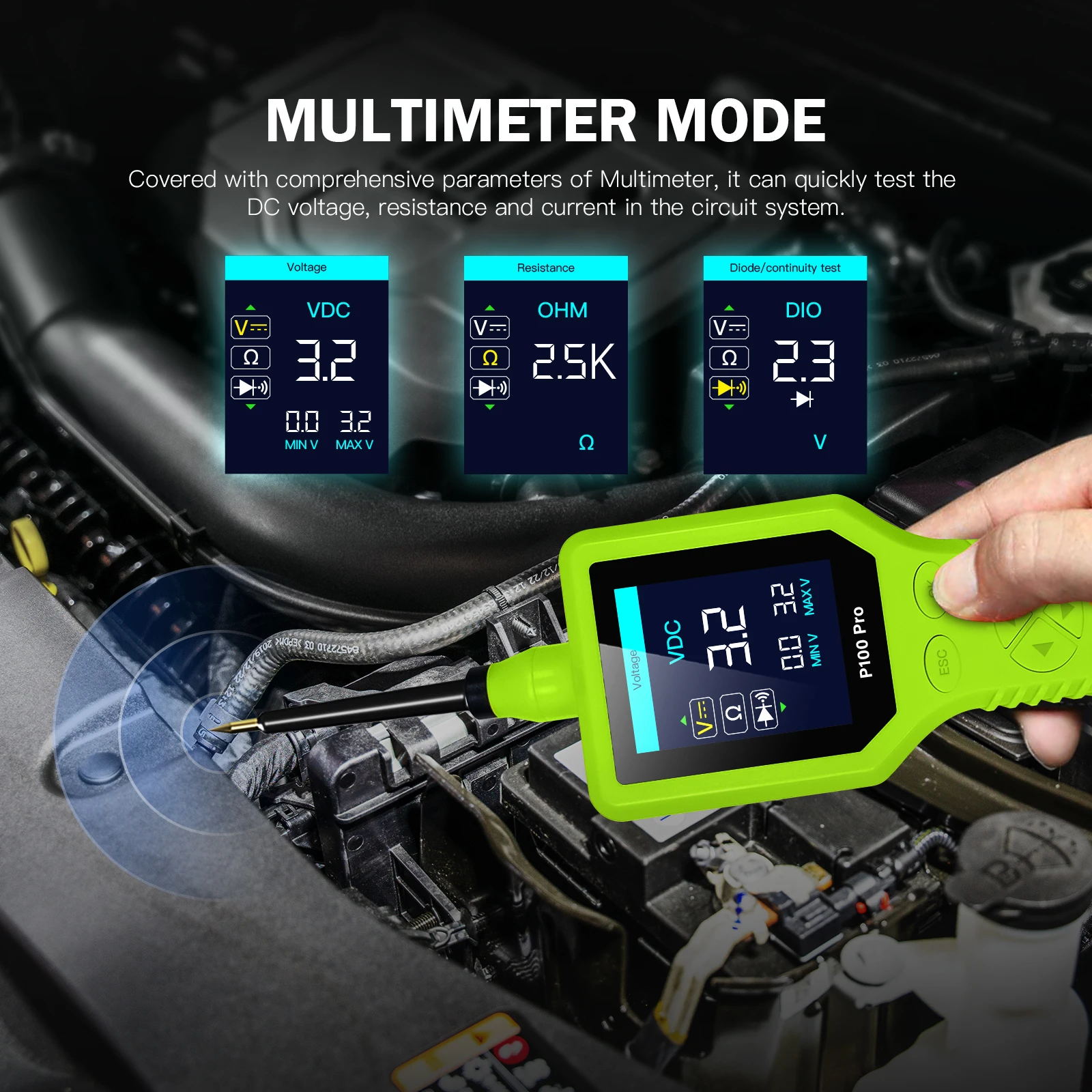

2、Multimeter mode (measure voltage, resistance, diode, continuity )

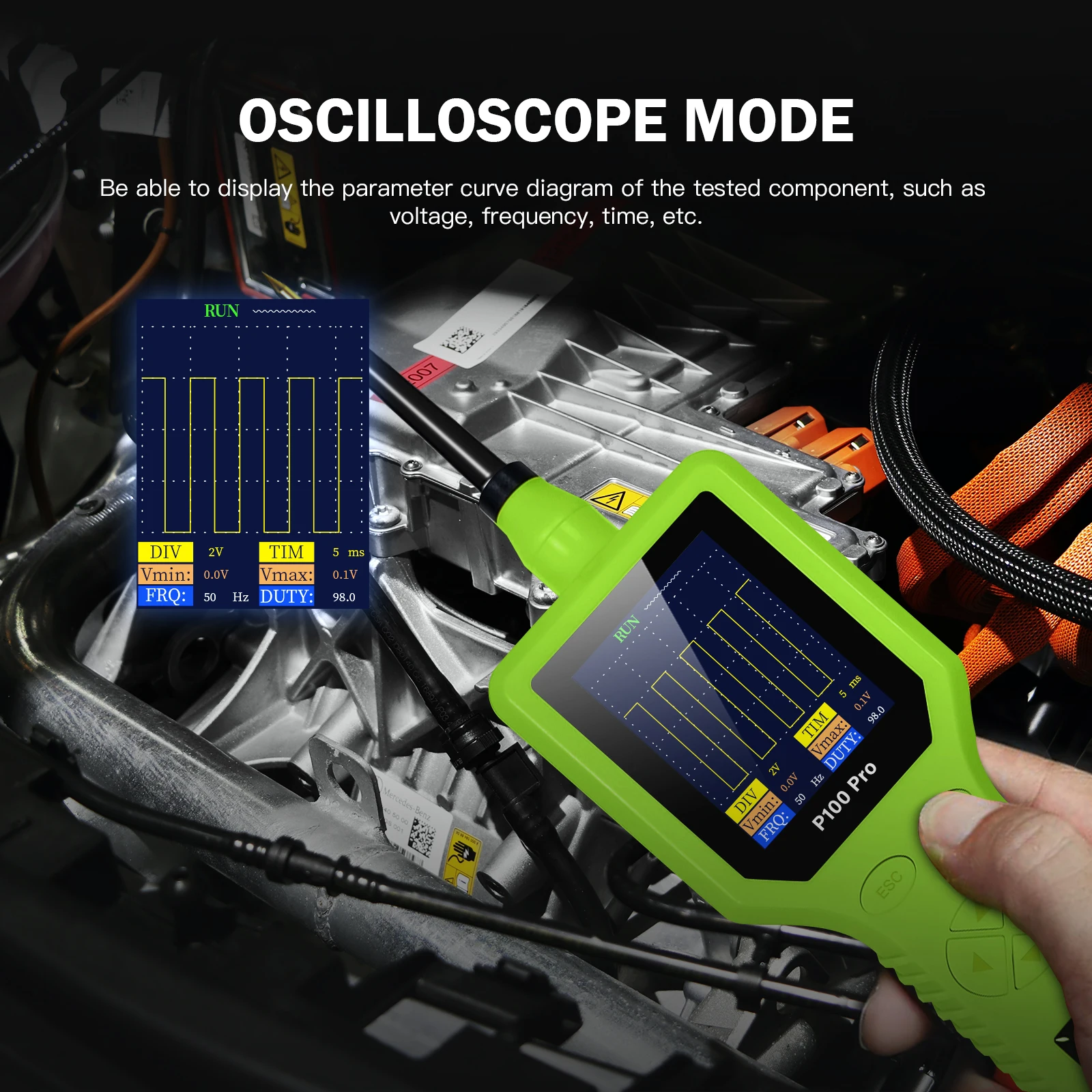

3、Oscilloscope function

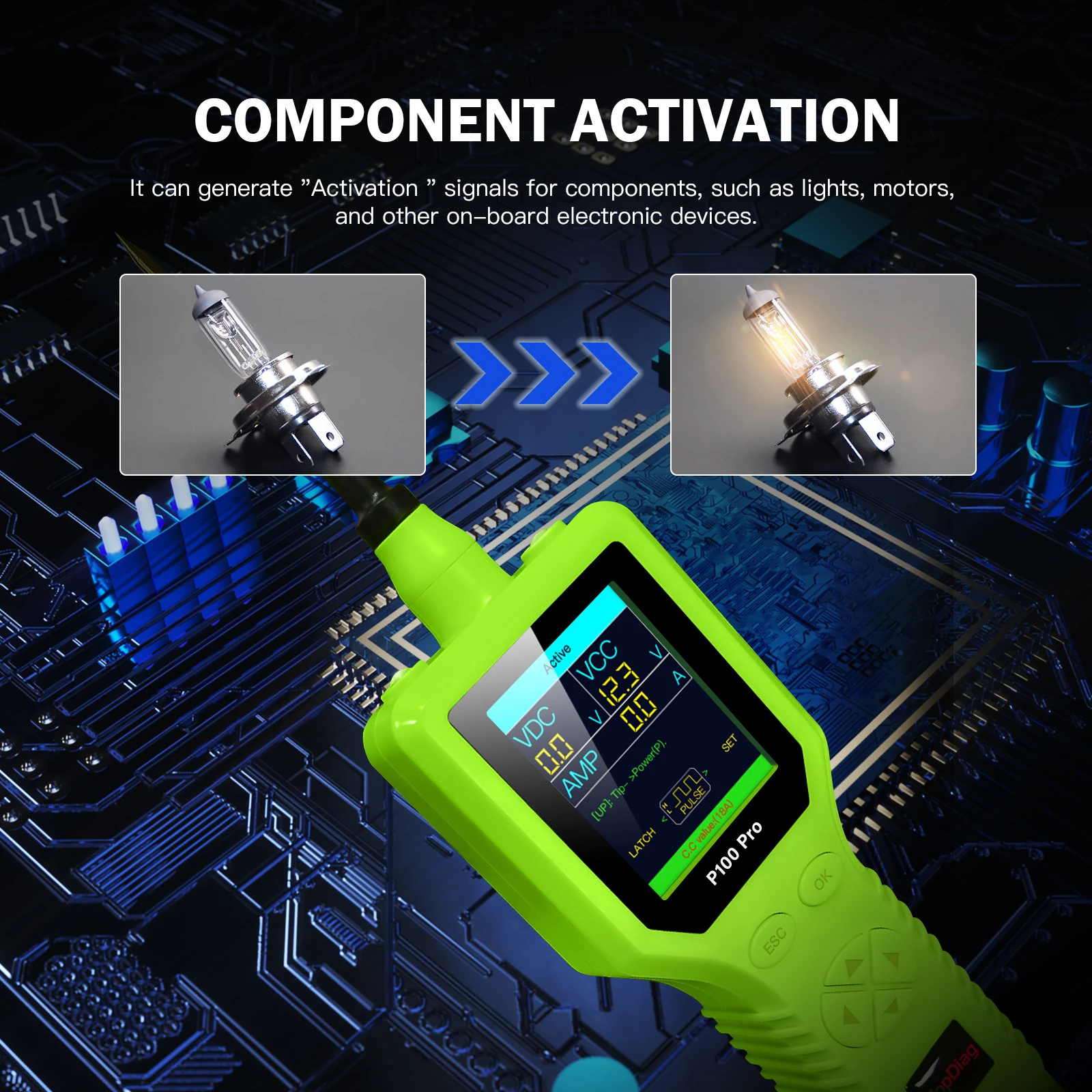

4、Activation of vehicle components

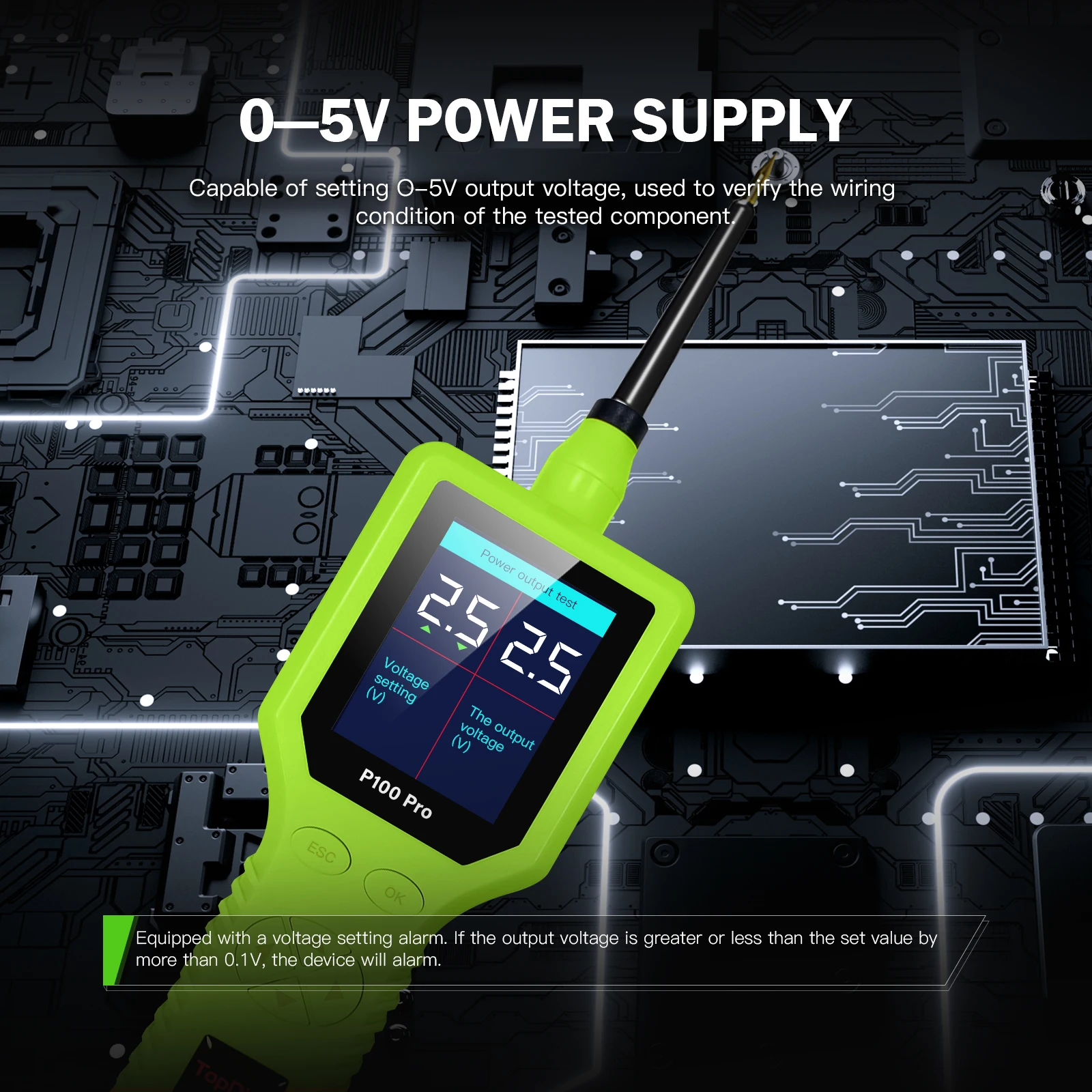

5、0-5V adjustable power supply
6、frequency
7、Network online free upgrade
8、Built in multiple languages
Specifications and Parameters：
1、Display: 2.4 inches (320*240 DPI) TFT true color display
2、Working temperature: 0-60°C (32-140 F°)
3、Storage temperature: 40-70°C (-40-185 F°)
4、External power supply: 12V or 24V powered by battery
5、Minimum working voltage: 9V
6、Maximum working voltage: 30V
7、Maximum measuring voltage: 100V
8、Minimum measuring voltage: 0.1V
9、Resistance measurement range:1 ohm~200K ohm
10、Active Current measuring range: 0~18A
11、Maximum continuous current: 18A
12、Color: black red orange yellow green blue
